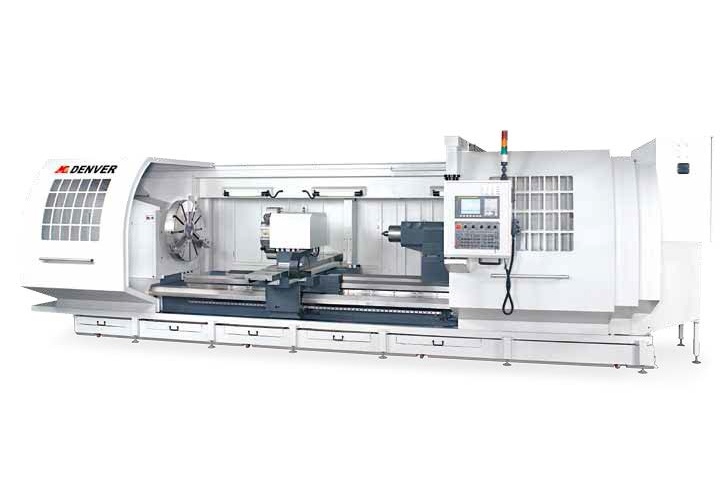

CNC Heavy Duty Powerful Lathe
DHK 960, 1120, 1220, 1320, 1420, 1520, 1620 x 1500, 2000, 3000, 4000, 5000, 6000

    SPINDLE BORE: 9", 10",12", 15", 20"
    -only fit to swing over bed over 1120mm

    BED WIDTH: 32" (810mm)

    *Standard accessories shall be subject to the quotation.

  • 1. This is a heavy duty precision CNC lathe that has the function of output full horse power
    during low & high speed, available for big, special parts and mold work pieces.
  • 2. The structure of Bed is adopted high toughness meehanite cast iron; stabilize properly
    parallel precision, Bed ways are induction hardened and ground.
  • 3. The slide way and ball screw can be lubricated automatically by central lubrication system.
    Oil flow and lubrication frequency can be set as desired. An alarm occurs in case of lack of
    oil.
  • 4. The coolant system delivers high pressure coolant to flush chips and extend tool service life.
  • 5. Mechanical and electrical are designed all in one.
  • 1. Controller: FANUC
  • 2. Spindle 4-steps speed auto. change
  • 3. XZ-axes auto. lubrication system
  • 4. XZ-axes with Turcite-B
  • 5. XZ-axes C5 ball screw
  • 6. Back chain type chip conveyor
  • 7. Manual Tailstock
    - quill 125mm for DHL model

    Strong manual / electric Tailstock
    - quill Ø 200mm for DHK model(manual quill, motorized base)
  • 8. Steady rest 16"
  • 9. Coolant system
  • 10. Full enclosed splash guard
  • 11. Heat exchanger
  • 12. Dead center
  • 13. Tools & tool box
  • 14. Operational manual
  • 1. Chuck:
    • 1-1. 3-jaw chuck
    • 1-2. 4-jaw independent chuck
    • 1-3. face plate with 4-jaw
    • 1-4. Hydraulic 3-jaw through - hole power chuck
    • 1-5. Hydraulic 3-jaw non through - hole power chuck
    • 1-6. 3-jaw air chuck
  • 2. Turret:
    • 2-1. Hydraulic 4-way turret H4
    • 2-2. Hydraulic turret H6
    • 2-3. Hydraulic turret V8
    • 2-4. Hydraulic turret V12
    • 2-5. Hydraulic turret H4-VDI
    • 2-6. Power turret (must match with C-axis)
  • 3. Transformer
  • 4. Steady rest (manual or hydraulic)
  • 5. Double turret
  • 6. Double chuck
  • 7. Linear scale
  • 8. C-axis
  • 9. Boring attachment
  • 10. Spindle oil cooler
  • 11. Air conditioner (for electric cabinet)
  • 12. Tailstock with self-rotary quill
2-1. Hydraulic 4-way turret H4 2-3. Hydraulic turret V8 2-4. Hydraulic turret V12
2-5. Hydraulic turret H4-VDI 2-6. Power turret (must match with C-axis) 6. Double chuck

9. Boring attachment

※ SPINDLE BORE: 9", 10",12", 15", 20" only fit to swing over bed over 1120mm.

Unit: mm / inch

Item / Model width of Bed 32" (810) DHK-960,  1120,  1220, 1320, 1420, 1520, 1620
1500 2000 3000
Capacity Max. swing over bed 960 (37.8")　1120 (44")　1220 (48")　 1320(51.97")
1420 (55.91")　1520 (59.84")　1620(63.78")
Center height 480 (18.9")　560 (22")　610 (24")　 660 (25.98")　
710 (27.95")　760 (29.92")　810(31.89")
Swing over cross slide 550 (21.65")　710 (27.95")　810 (31.89")　
910 (35.83)　 1010 (39.76")　1110 (43.7")　
1210 (47.64")
Z-axis travel 1500 (59") 2000 (78.74") 3000 (118.11")
* Z-axis travel changed by different turret, chuck or tailstock.
Distance between centers 1500 (59") 2000 (78.74") 3000 (118.11")
Length of bed 3960 (155.91") 4460 (175.6") 5460 (215")
Width of bed 810mm (31.88")
Headstock Spindle bore ø152
(6")		 OP:ø230
(9")		 OP:ø255
(10")		 OP:ø312
(12")		 OP:ø380
(15")
Spindle nose A2-11
OP: A2-15		 A2-15
OP:A2-20		 A2-15
OP:A2-20		 A2-20 A2-20
Range of spindle speed 6-500 rpm 7-350 rpm
1. Range speed 6-35 rpm 7-20 rpm
2. Range speed 19-112 rpm 19-60 rpm
3. Range speed 70-350 rpm 40-121 rpm
4. Range speed 226-500 rpm 11-350 rpm
* Spindle speed is changed by different horse power.
No. of spindle speeds Auto 4 Steps / Hydraulic
Travel X-axis travel 600 (23.62") for hydraulic turret: H4
* X-axis travel changed by different turret.
Dia. of X-axis ball screw 40 mm, pitch 10 mm, C3 level
Dia. of Z-axis ball screw 63 mm, pitch 10 mm
X, Z-axis rapid feed 5000 mm/min (196.85"/min)
X, Z-axis cutting feed rate 3000 mm/min (118.11"/min)
OP-Turret Turret type OP: Hydraulic Turret H4,H6,V8,V12,H4-VDI /
Power Turret
Tool shank / Numbers 32x32 (1.23"x1.23")
Tailstock Quill dia. 200 (7.87")
Quill travel 300 (11.81")
Quill taper MT6
Body movement Carried by saddle
Body lock-type Manual (OP: Hydraulic type)
Quill movement Motorized (OP: Hydraulic type)
Base movement Motorized
Motor Spindle Motor Continuous 22 kw (OP:30~50 kw)
30 min Rating 22 kw
X-axis servo Motor 3 kw
Z-axis servo Motor 4 kw
Hydraulic pump 1.5 kw (2HP)
Coolant pump 1.275 kw (1.7HP)
Measurement Machine dimension (LxWxH) 5170/ 5670/ 6670 x W:3100 x H:2280
204"/223"/263" x W:122" x H:90"
N.W. / G.W. (kgs)(Approx)
DHK-960		 13000 / 14600 13600 / 15800 14800 / 17200
N.W. / G.W. (kgs)(Approx)
DHK-1120		 14000 / 15600 14600 / 16800 15800 / 18200
Color Upper parts: RAL-7035 (Light gray) + Base: RAL-7024 (Dark gray)

* We reserve the right to modify & improve our products without notice.
* Measurement be inquired for DHK-1220 ~ DHK1620 series.

※ SPINDLE BORE: 9", 10",12", 15", 20" only fit to swing over bed over 1120mm.

Unit: mm / inch

Item / Model width of Bed 32" (810) DHK-960, 1120, 1220, 1320,  1420,  1520,  1620
4000 5000 6000
Capacity Max. swing over bed 960 (37.8")　1120 (44")　1220 (48")　
1320(51.97")　1420 (55.91")　1520 (59.84")　1620(63.78")
Center height 480 (18.9")　560 (22")　610 (24")　
660 (25.98")　710 (27.95")　760 (29.92")　810(31.89")
Swing over cross slide 550 (21.65")　710 (27.95")　810 (31.89")　
910 (35.83)　1010 (39.76")　1110 (43.7")　1210 (47.64")
Z-axis travel 4000 (157.48") 5000 (196.85") 6000 (236")
* Z-axis travel changed by different turret, chuck or tailstock.
Distance between centers 4000 (157.48") 5000 (196.85") 6000 (236")
Length of bed 6460 (254.33") 7460 (293.7") 8460 (333")
Width of bed 810mm (31.88")
Headstock Spindle bore ø152 (6") OP:ø230 (9") OP:ø255 (10") OP:ø312
(12")		 OP:ø380
(15")
Spindle nose A2-11
OP:A2-15		 A2-15
OP:A2-20		 A2-15
OP:A2-20		 A2-20 A2-20
Range of spindle speed 6-500 rpm 7-350 rpm
1. Range speed 6-35 rpm 7-20 rpm
2. Range speed 19-112 rpm 19-60 rpm
3. Range speed 70-350 rpm 40-121 rpm
4. Range speed 226-500 rpm 11-350 rpm
* Spindle speed is changed by different horse power.
No. of spindle speeds Auto 4 Steps / Hydraulic
Travel X-axis travel 600 (23.62") for hydraulic turret: H4
* X-axis travel changed by different turret.
Dia. of X-axis ball screw 40 mm, pitch 10 mm, C3 level
Dia. of Z-axis ball screw 63 mm, pitch 10 mm
X, Z-axis rapid feed 5000 mm/min (196.85"/min)
X, Z-axis cutting feed rate 3000 mm/min (118.11"/min)
OP-Turret Turret type OP: Hydraulic Turret H4,H6,V8,V12,H4-VDI /
Power Turret
Tool shank / Numbers 32x32 (1.23"x1.23")
Tailstock Quill dia. 200 (7.87")
Quill travel 300 (11.81")
Quill taper MT6
Body movement Carried by saddle
Body lock-type Manual (OP: Hydraulic type)
Quill movement Motorized (OP: Hydraulic type)
Base movement Motorized
Motor Spindle Motor Continuous 22 kw (OP:30~50 kw)
30 min Rating 22 kw
X-axis servo Motor 3 kw
Z-axis servo Motor 4 kw
Hydraulic pump 1.5 kw (2HP)
Coolant pump 1.275 kw (1.7HP)
Measurement Machine dimension (LxWxH) 7670/ 8670/ 9670 x W:3100 x H:2280
302"/341"/381" x W:122" x H:90"
N.W. / G.W. (kgs)(Approx)
DHK-960		 16000 / 18600 17200 / 20000 18400 / 21400
N.W. / G.W. (kgs)(Approx)
DHK-1120		 17000 / 19600 18200 / 21000 19400 / 22400
Color Upper parts: RAL-7035 (Light gray) + Base: RAL-7024 (Dark gray)

* We reserve the right to modify & improve our products without notice.
* Measurement be inquired for DHK-1220 ~ DHK1620 series.

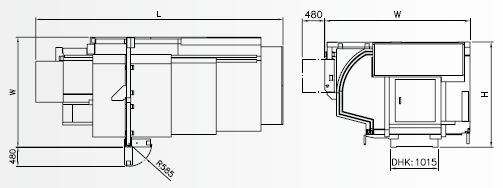

Unit: mm

L1 1500 2000 3000 4000 5000 6000 H W
L 5170 5670 6670 7670 8670 9670 2280 3100
